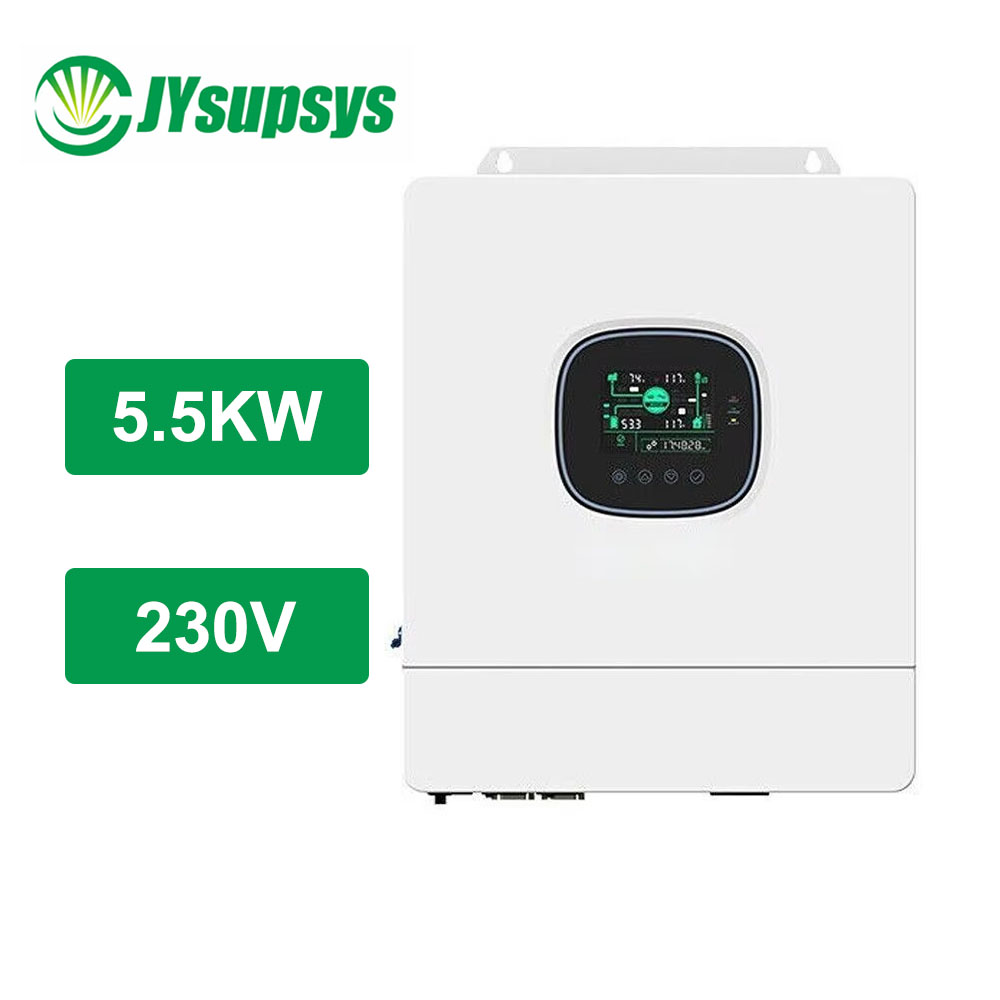

Parallel Function 5.5KW Hybrid Solar Inverter Off Grid Inverter DC 48V to AC 230V for Solar Home Energy Storage System
Description
Feature:
◆ EfficiencyAdvanced MPPT with up to 99.9% efficiency
Multiple charge and discharge modes are available
Multiple charge and discharge modes are available
◆ Reliable
Outputs high-quality pure sine wave AC power
Reliable output for long periods at rated power
◆ Safety
The 360 degrees of security from hardware tosoftware
Multiple safety approvals available
◆ User-Friendly
Industrial design with a modern aesthetic look
Easy to install and simple to use
◆ All in one
Support for many types of batteries
Supports Li-ion battery BMS communication
◆ Intelligent
Exclusive Li-ion battery BMS dual activation
Support for remote monitoring of operating
MODEL
|
JYS 5500P6
|
CAN BE
SET |
INVERTER
|
||
Rated Output Power
|
5,500W
|
|
Max.Peak Power
|
11,000VA
|
|
Rated Output Voltage
|
230Vac(single phase/three phase-paralleled)
|
√
|
Load Capacity of Motors
|
4HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
√
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms(typical)
|
|

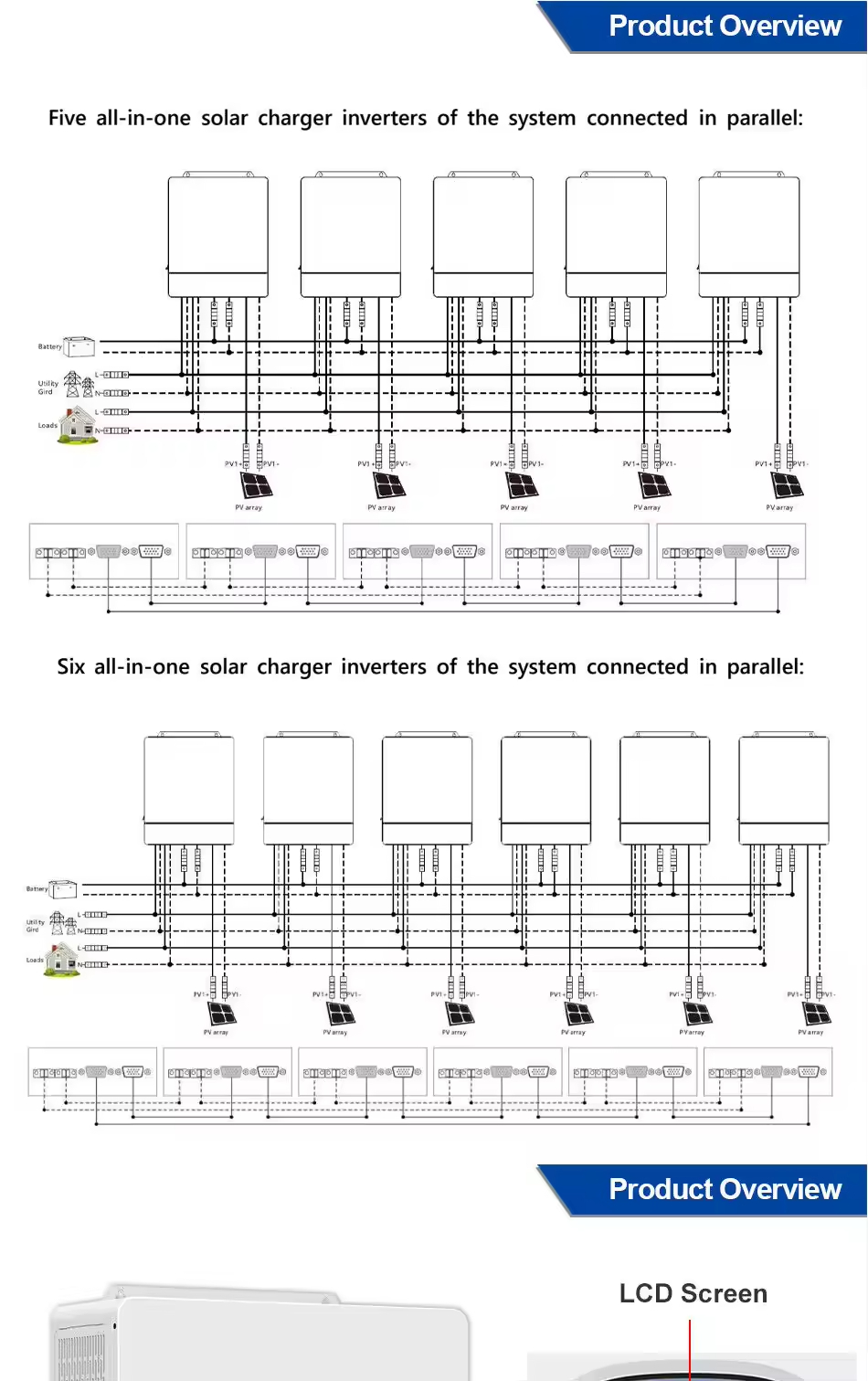

Parallel Capacity
|
1–6
|
|
BATTERY
|
||
Battery Type
|
Lead-acid / Li-ion / User defined
|
√
|
Rated Battery Voltage
|
48V
|
|
Voltage Range
|
40~60Vdc
|
√
|
Max.MPPT Charging Current
|
100A
|
√
|
Max.Mains/Generator
Charging Current |
60A
|
√
|
Max.Hybrid Charging Current
|
100A
|
√
|
PV INPUT
|
||
Num. of MPPT Trackers
|
1
|
|
Max.PV Array Power
|
6,000W
|
|
Max.Input Current
|
22A
|
|
Max.Voltage of Open Circuit
|
500Vdc
|
|
MPPT Voltage Range
|
120-450Vdc
|
|
UTILITY/ GENERATOR INPUT
|
||
Input Voltage Range
|
UPS mode:170~280Vac;APL mode:90~280Vac
|
√
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
40A
|
|
EFFICIENCY
|
||
MPPT Tracking Efficiency
|
99.90%
|
|
Max. Battery Inverter
Efficiency |
92%
|
|
GENERAL
|
||
Dimensions
|
426*322*124mm (1.40*1.06*0.41ft)
|
|
Weight
|
10.5kg (23.15lb)
|
|
Protection Degree
|
IP20, Indor OnIy
|
|
Operating Temperature Range
|
-10℃~55℃
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
InternaI Fan
|
|
Warranty
|
1.5 Years
|
|
COMMUNICATION
|
||
Embedded Interfaces
|
RS485 / USB / Dry contact
|
√
|
External Modules(Optional)
|
Wi-Fi / GPRS
|
√
|
CERTIFICATION
|
||
Safety
|
CE(IEC 62109-1)/ CETL(UL 1741 C22.2 NO.107.1) /FCC/SAA
|
|
EMC
|
EN61000
|
|
RoHS
|
Yes
|
