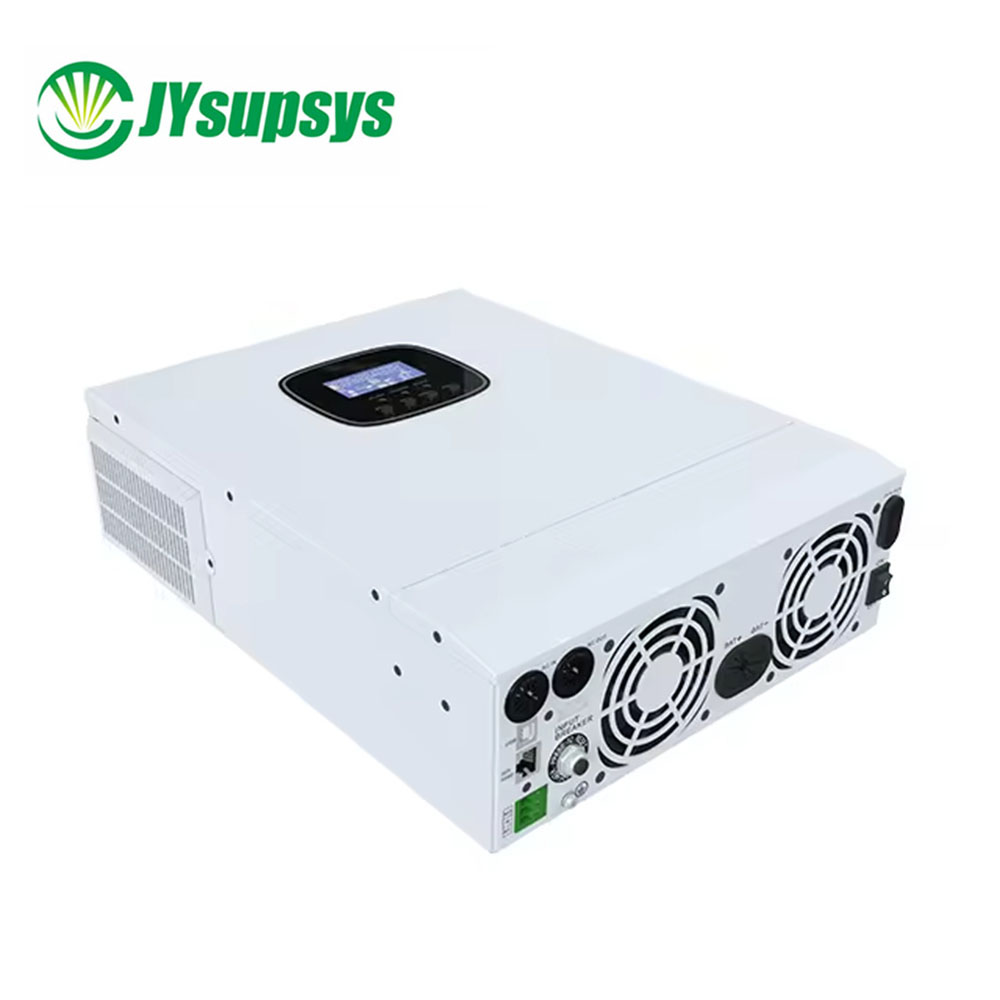

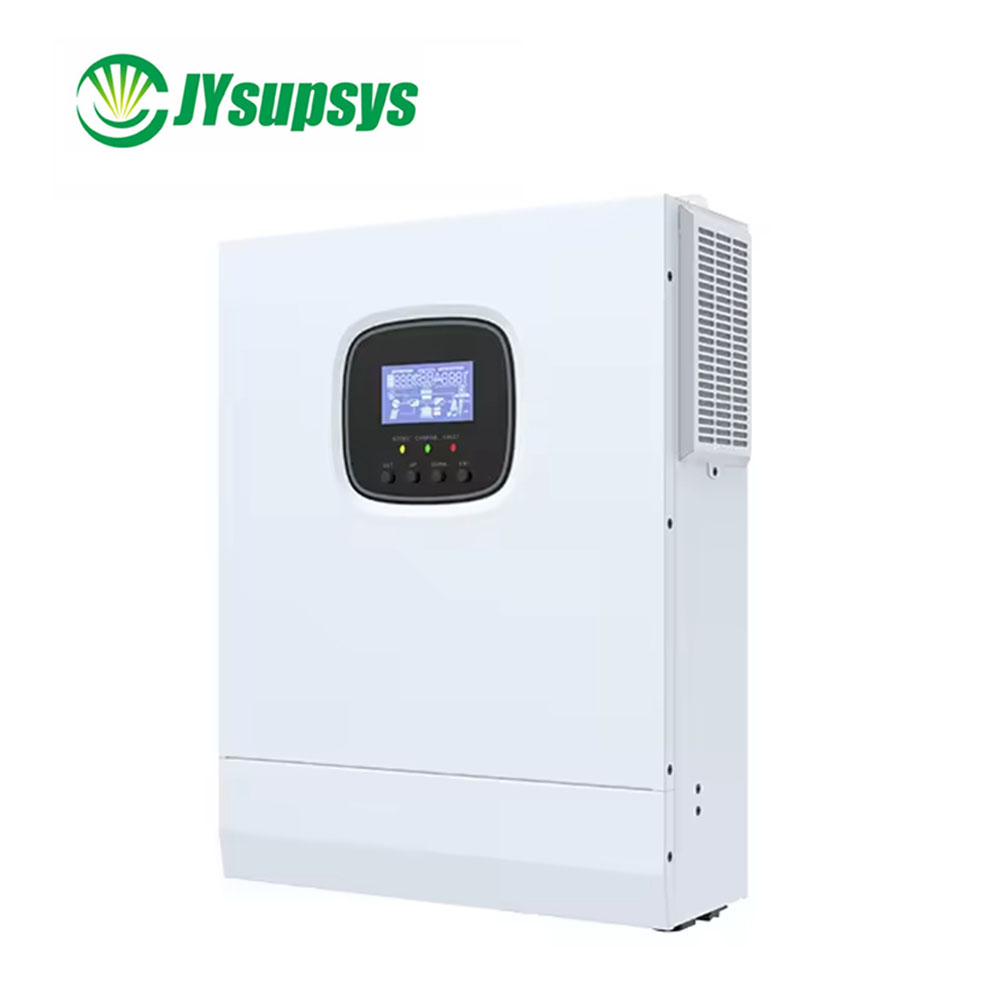

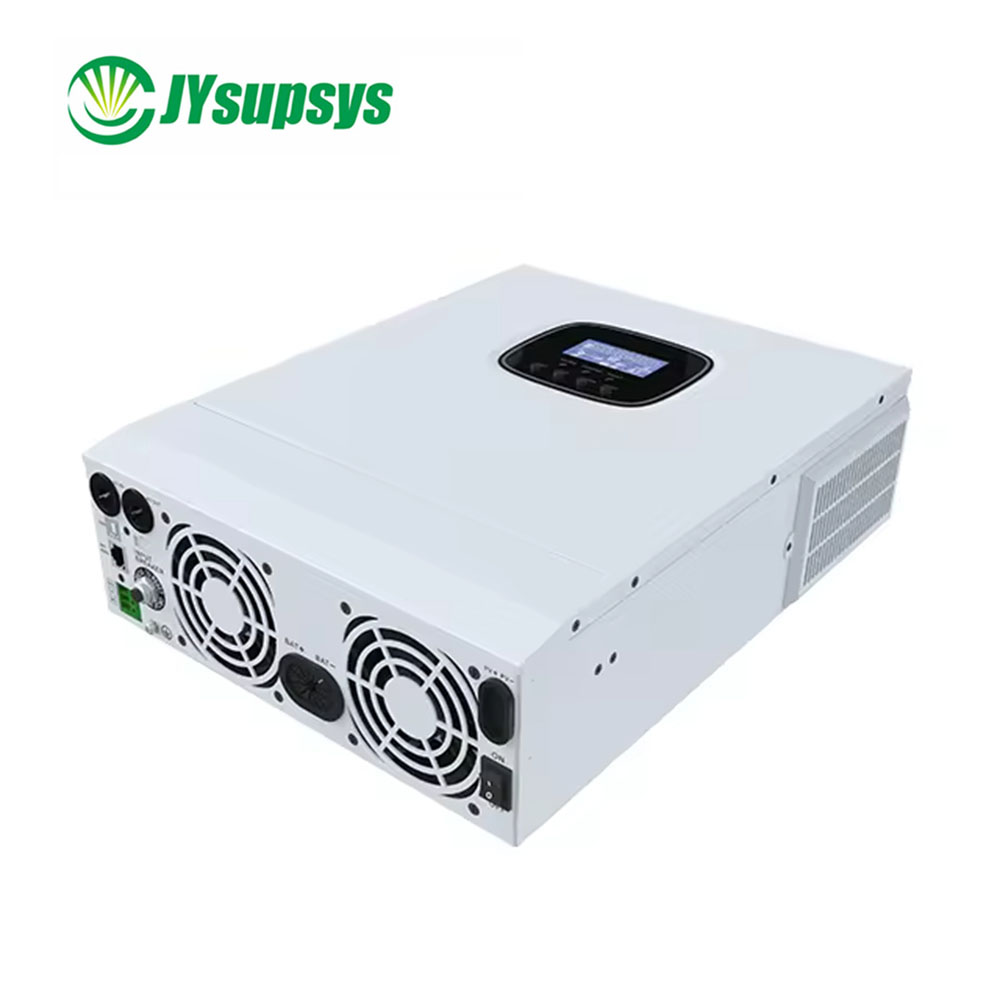

DC 24V to AC 110V 120V 3KW Single Phase Pure Sine Wave MPPT Solar Hybrid Inverter with Max. 60A MPPT Charging Current
Description
Feature:
⚫ Off-grid & Hybrid pure sine wave inverter.
⚫ Rated Power 3000W.
⚫ Single Phase 120Vac Inverter
⚫ Compatible with 24V lithium-ion and lead-acid battery, support user-defined.
⚫ Max. PV charging current up to 60A.
⚫ Max. AC charging current up to 40A.
⚫ Max. hybrid charging current up to 100A.
⚫ 90~140Vac AC input voltage range.
⚫ MPPT Working Voltage 30~90Vdc, Voc is 108Vdc
⚫ Energy saving mode function to reduce no-load energy losses.

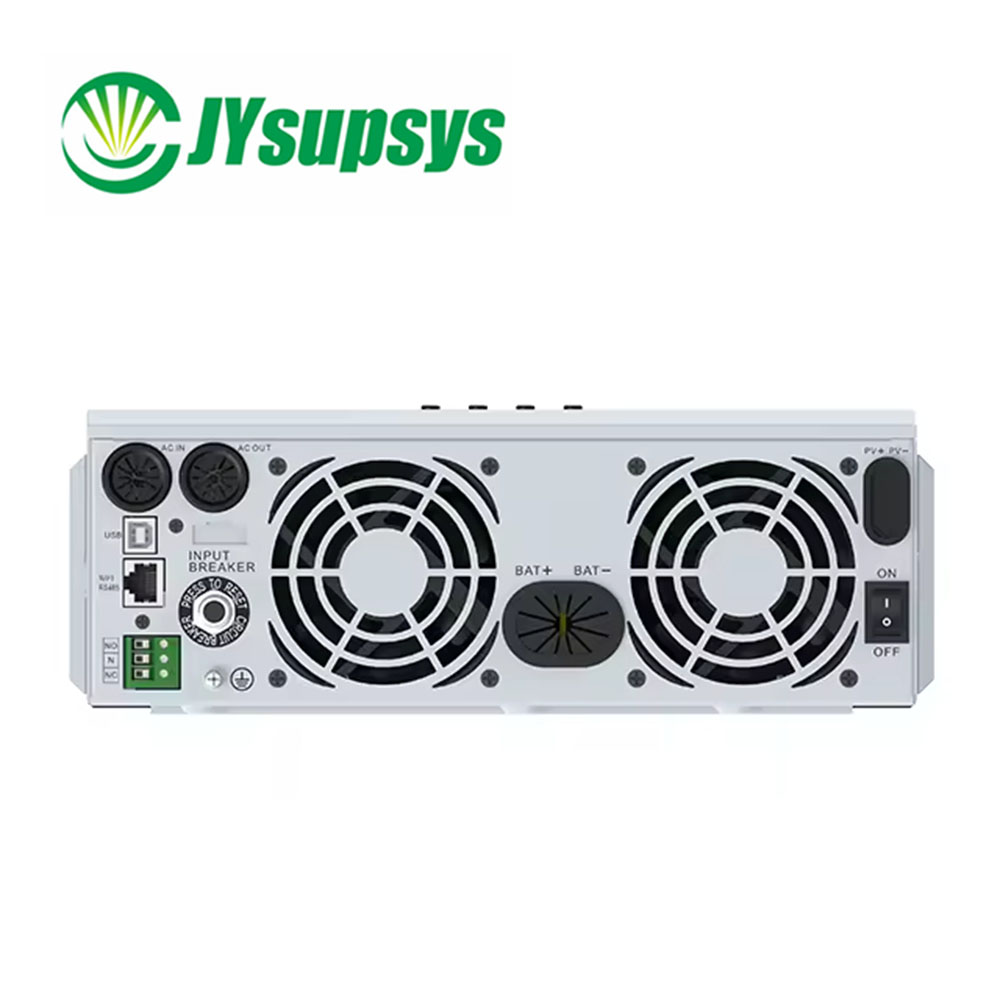

⚫ Configure multiple communication interfaces (RS485/USB/Dry contact).
|
Model Name
|

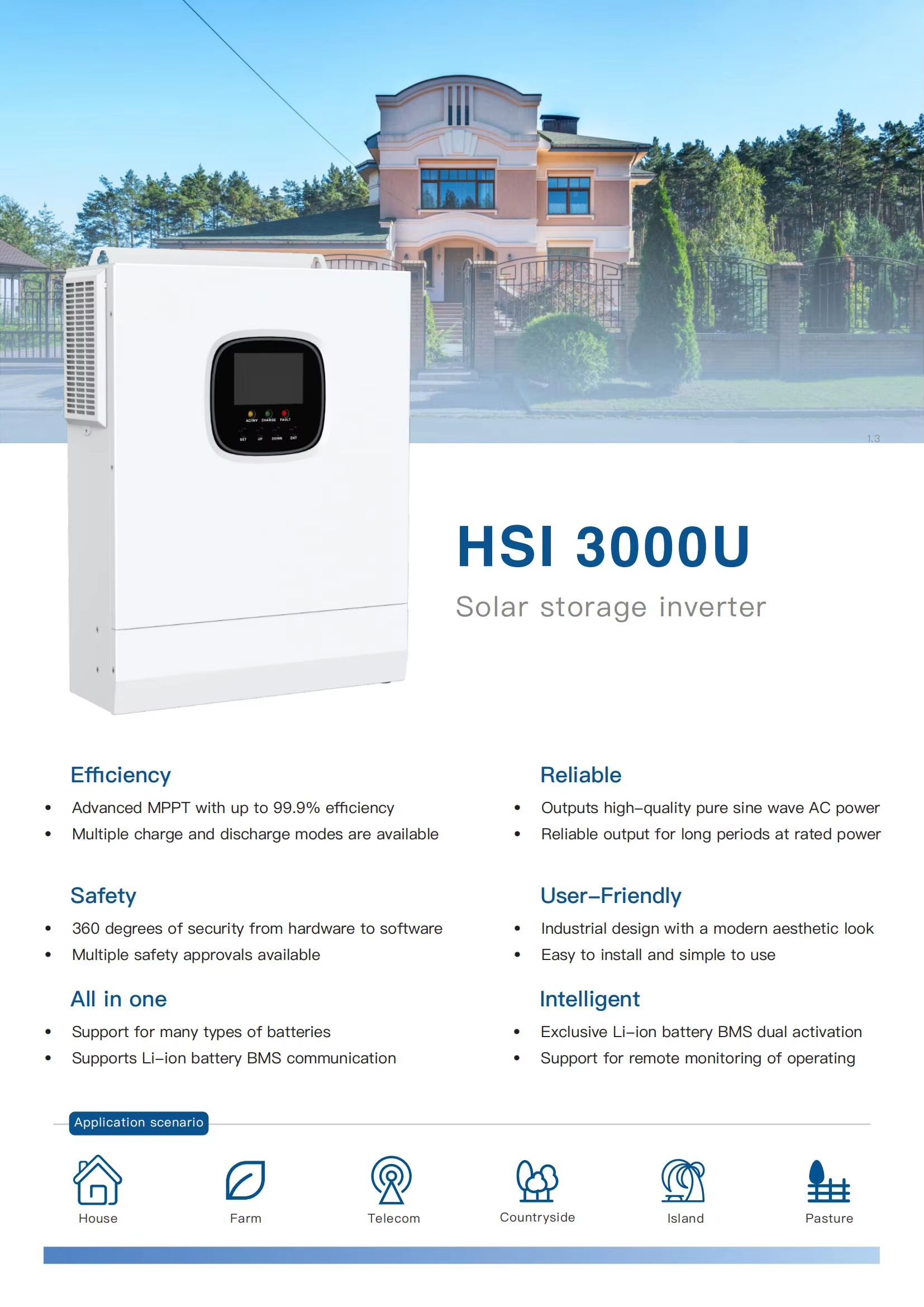

HSI 3000U
|
HSI 5000U
|
|
Inverter Output
|
||
|
Rated Output Power
|
3000W
|
5000W
|
|
Max Peak Power
|
6000VA
|
11000VA
|
|
Rated Output Voltage
|
Single Phase 120Vac(L/N/PE)
|
|
|
Load Capacity of Motors
|
2HP
|
4HP
|
|
Rated AC Frequency
|
50/60Hz
|
|
|
Waveform
|
Pure Sine Wave
|
|
|
Switch Time
|
10ms(Typical)
|
|
|
Battery
|
||
|
Battery Type
|
Li-ion/Lead-Acid / User Defined
|
|
|
Rated Battery Voltage
|
24Vdc
|
48Vdc
|
|
Voltage Range
|
20~33Vdc
|
40~60Vdc
|
|
Max MPPT Charging Current
|
60A
|
80A
|
|
Max Mains/Generator Charging Current
|
40A
|
|
|
Max Hybrid Charging Current
|
100A
|
80A
|
|
PV INPUT
|
||
|
Nr. of MPPT Trackers
|
1
|
|
|
Max PV Array Power
|
1600W
|
6000W
|
|
Max PV Input Current
|
40A
|
22A
|
|
Open Circuit Voltage
|
108Vdc
|
500Vdc
|
|
MPPT Voltage Range
|
30~90Vdc
|
120-450Vdc
|
|
MAINS/GENERATOR INPUT
|
||
|
Input Voltage Range
|
90~140Vac
|
|
|
Frequency Range
|
50/60Hz
|
|
|
Bypass Overload Current
|
40A
|
63A
|
|
EFFICIENCY
|
||
|
MPPT Tracking Efficiency
|
99.90%
|
|
|
Max Inverter Efficiency
|
92%
|
|
|
GENERAL
|
||
|
Dimension
|
378*280*103mm
|
426*322*126mm
|
|
Net Weight
|
6.8KG
|
11.6KG
|
|
Protection Degree
|
IP20, Indoor Use Only
|
|
|
Operating Temperature Range
|
-10-55℃
|
|
|
Noise
|
≤60dB
|
|
|
Cooling Method
|
Fan Cooling
|
|
|
Warranty
|
12 Months
|
|
|
COMMUNICATION
|
||
|
Embedded Interface
|
RS485/USB/Dry Contact
|
|
|
External Module(Optional)
|
Wifi
|
|
|
CERTIFICATION
|
||
|
Safety
|
CE(IEC 62109-1) / CETL(UL 1741/ CSA C22.2 NO.107.1)
|
|
|
EMC
|
EN61000, C2
|
|
|
RoHs
|
Yes
|
|
