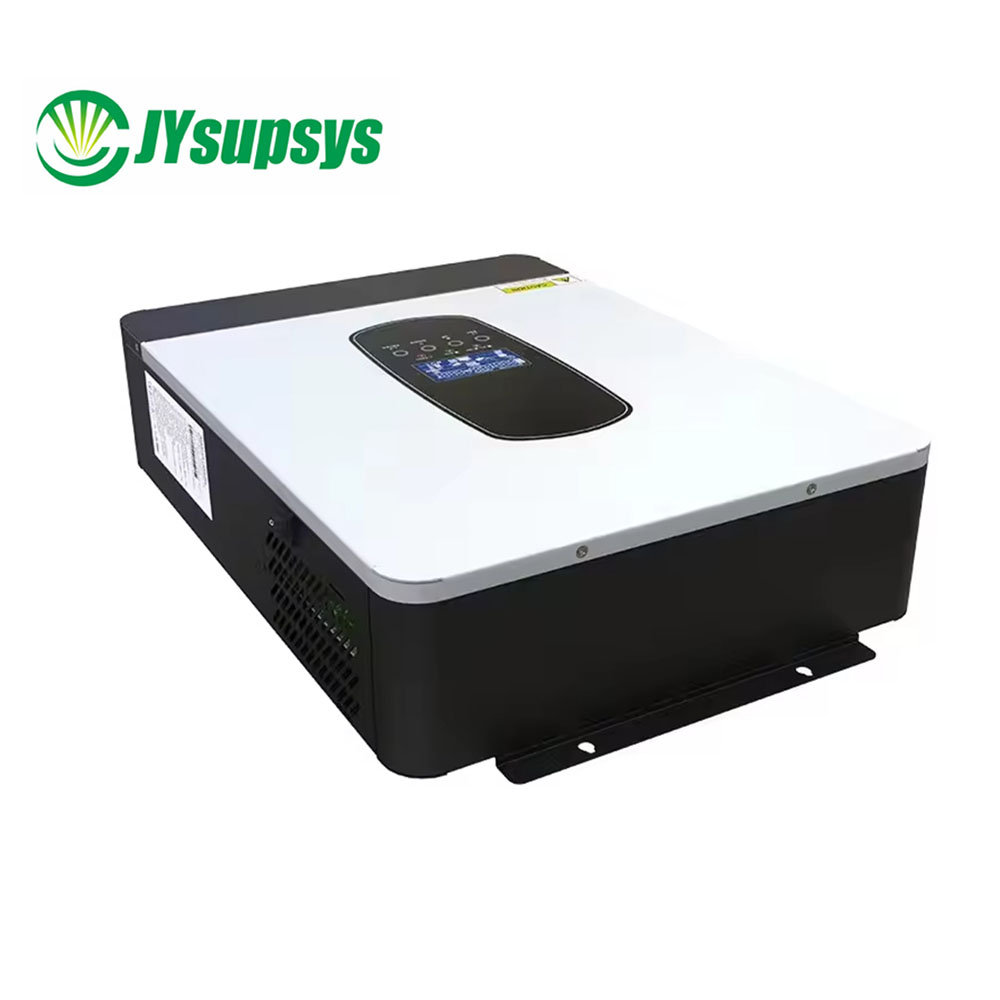

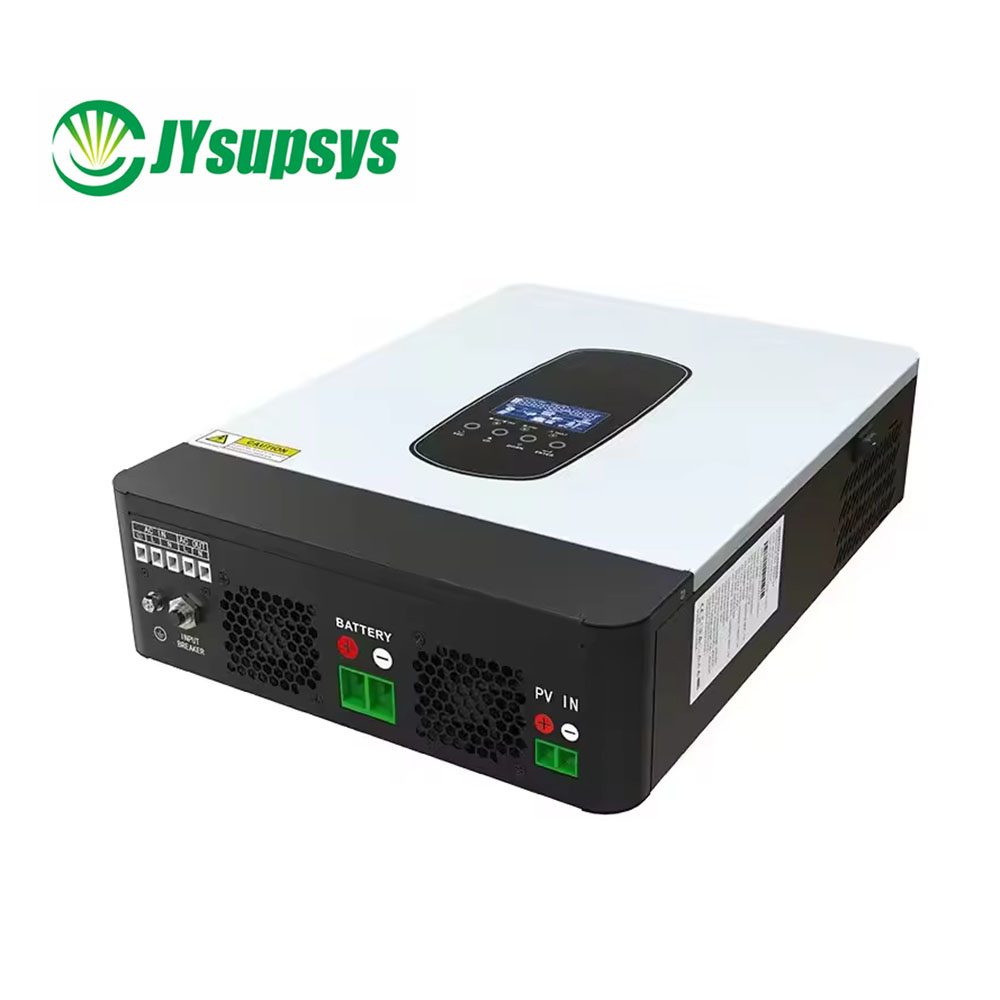

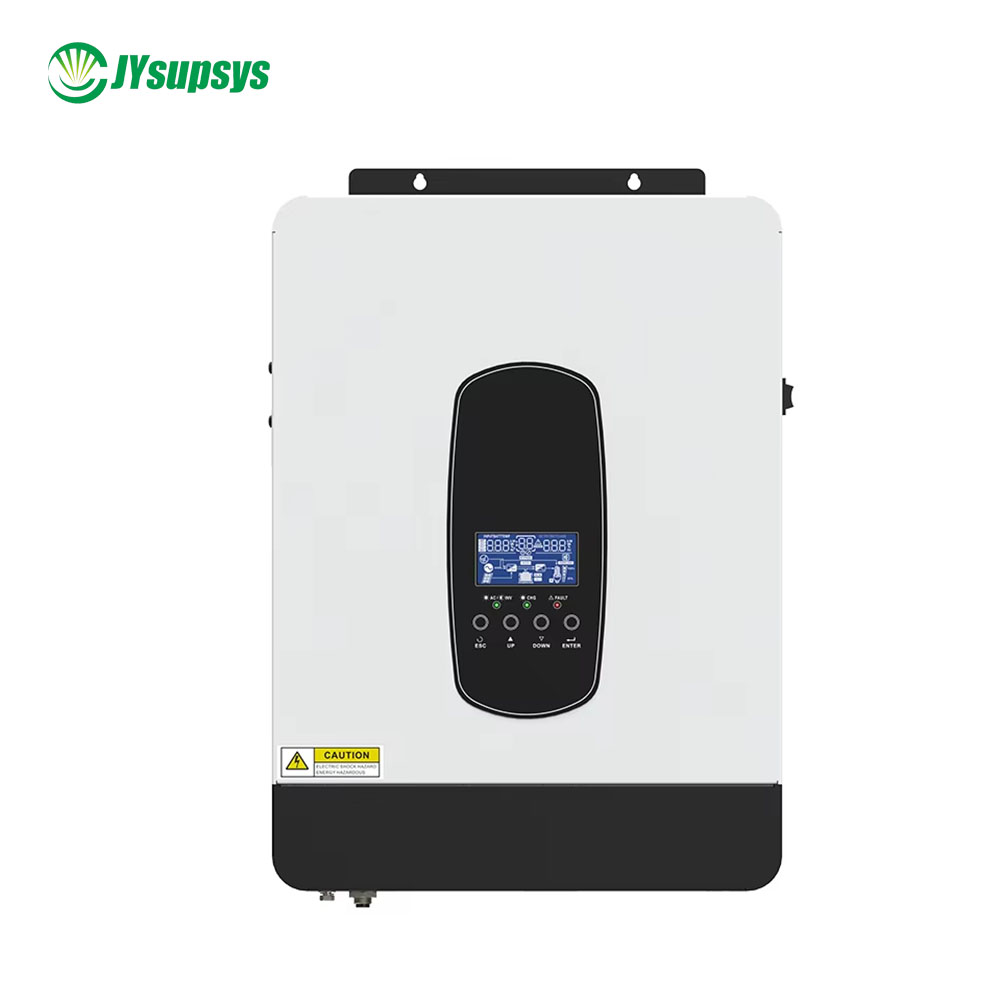

1.8KW 3KW 3.8KW 6.2KW 220Vac Off Grid Hybrid Solar Inverter 110A MPPT Solar Charge Controller Inverter
Description

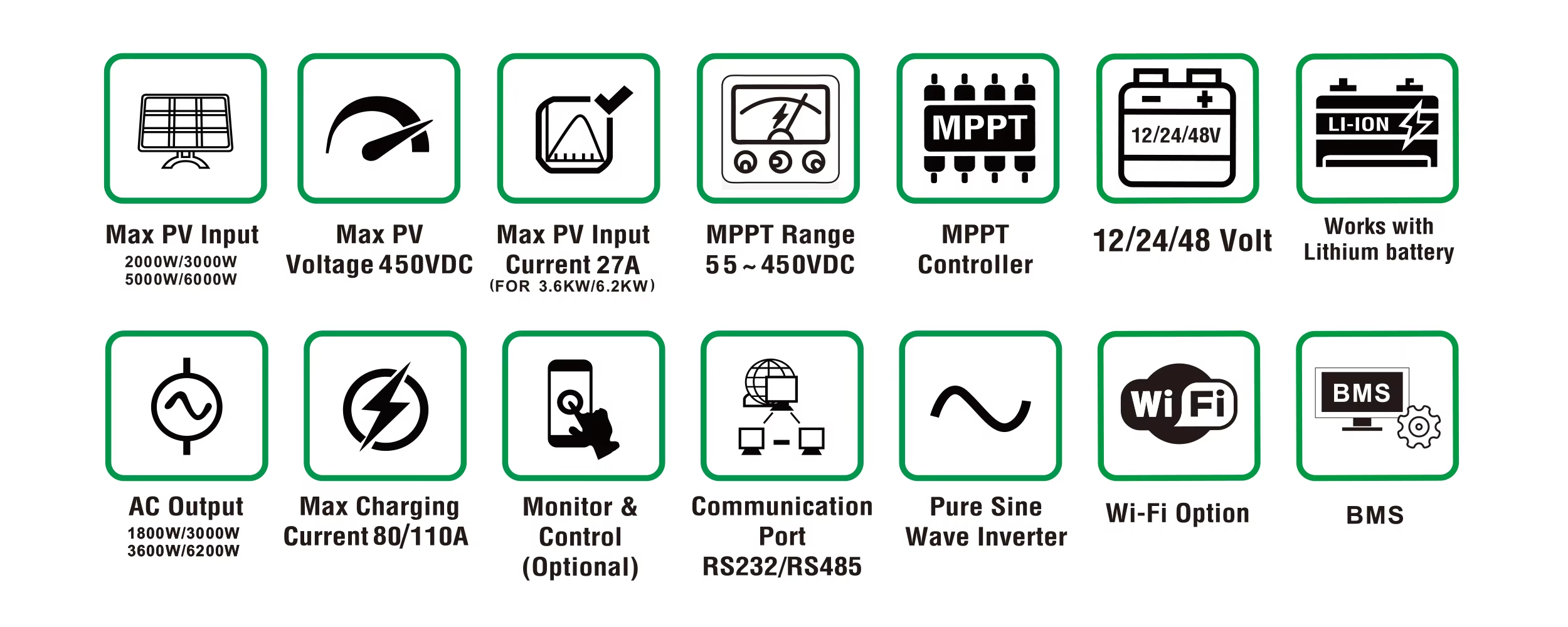

Feature:
1. Pure sine wave inverter
2. Programmable supply priority for PV,battery or Grid
3. High PV input voltage range(55~450VDC)
4. Built-in Max 110A(3.6KW&6.2KW) MPPT solar charge
5. Compatibe with lithium-ion battery
6. Support BMS communication with Lithium battery
7. Smart battery charge design to optimize battery life
8. Overload,high temperature,inverter output short circuit protection
9. Cold start function
10. Intelligent fan speed adjustment
11. Built-in anti-dusk kit for harsh enviromen(optional)
12. WIFI&GPRS available for IOS and android
2. Programmable supply priority for PV,battery or Grid
3. High PV input voltage range(55~450VDC)
4. Built-in Max 110A(3.6KW&6.2KW) MPPT solar charge
5. Compatibe with lithium-ion battery
6. Support BMS communication with Lithium battery
7. Smart battery charge design to optimize battery life
8. Overload,high temperature,inverter output short circuit protection
9. Cold start function
10. Intelligent fan speed adjustment
11. Built-in anti-dusk kit for harsh enviromen(optional)
12. WIFI&GPRS available for IOS and android
|
MODEL
|
SP-2200
|
SP-3200
|
SP-4200
|
SP-7000
|
|
Rated Power
|
2200VA/1800W
|
3200VA/3000W
|
4200VA/3800W
|
7000VA/6200W
|
|
INPUT
|
||||
|
Voltage
|
230VAC
|
|||
|
Selectable Voltage Range
|
170-280VAC(for personal computers)
|
|||
|
90-280VAC(for home appliances)
|
||||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|||
|
OUTPUT
|
||||
|
AC Voltage Regulation (Batt.Mode)
|
230VAC±5%
|
|||
|
Surge power
|
4400VA
|
6400VA
|
8000VA
|
14000VA
|
|
Transfer Time
|
10ms (for personal computers)
|
|||
|
20ms (for home appliances)
|
||||
|
Wave form
|
||||
|
ATTERY & AC CHARGER
|
||||
|
Battery Voltage
|
12VDC
|
24VDC
|
24VDC
|
48VDC
|
|
Floating Charge Voltage
|
13.5VDC
|
27VDC
|
27VDC
|
54VDC
|
|
Overcharge Protection
|
15.5VDC
|
31VDC
|
31VDC
|
61VDC
|
|
Maximum charge current
|
60A
|
80A
|
||
|
SOLAR CHARGER
|
||||
|
MAX.PV Array Power
|
2000W
|
3000W
|
6000W
|
6000W
|
|
MPPT Range@ Operating Voltage
|
55-450VDC
|
|||
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|||
|
Maximum Charging Current
|
80A
|
110A
|
||
|
Maximum Efficiency
|
98%
|
|||
|
PHYSICAL
|
||||
|
Dimension.D*W*H(mm)
|
405*286*98mm
|
423*290*100mm
|
423*310*120mm
|
|
|
Net Weight (kgs)
|
4.5kg
|
5.0kg
|
7.0kg
|
8.0kg
|
|
Communication Interface
|
RS232/RS485(Standard)
|
|||
|
GPRS/WIFI(Optional)
|
||||
|
OPERATING ENVIRONMENT
|
||||
|
Humidity
|
5% to 95% Relative Humidity(No-condensing)
|
|||
|
Operating Temperature
|
-10℃ to 55℃
|
|||
|
Storage Temperature
|
-15℃ to 60℃
|
|||
